- Number of Ports in Cap: 3, 4
- Fitting ID: 3.2
- One reserved port for the activated carbon exhaustfilter

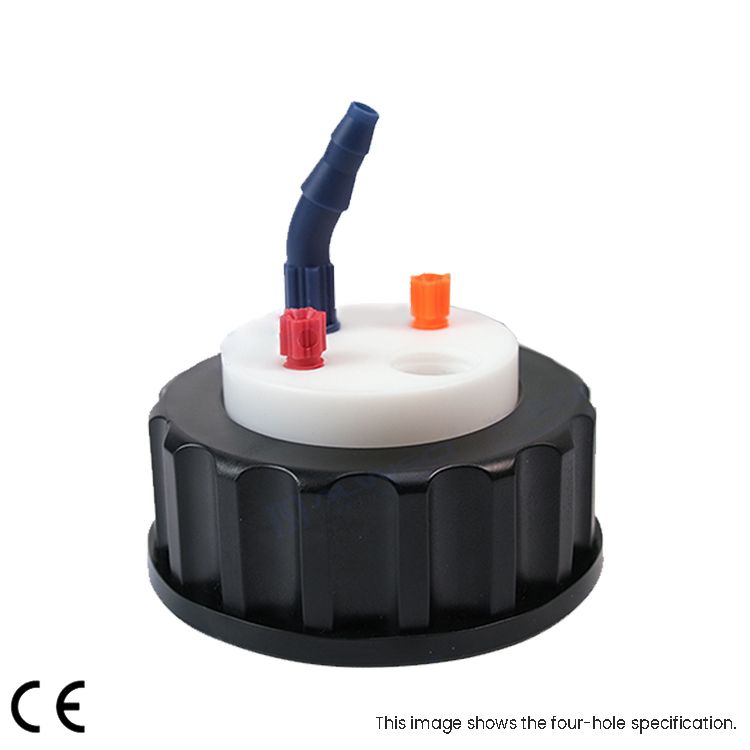

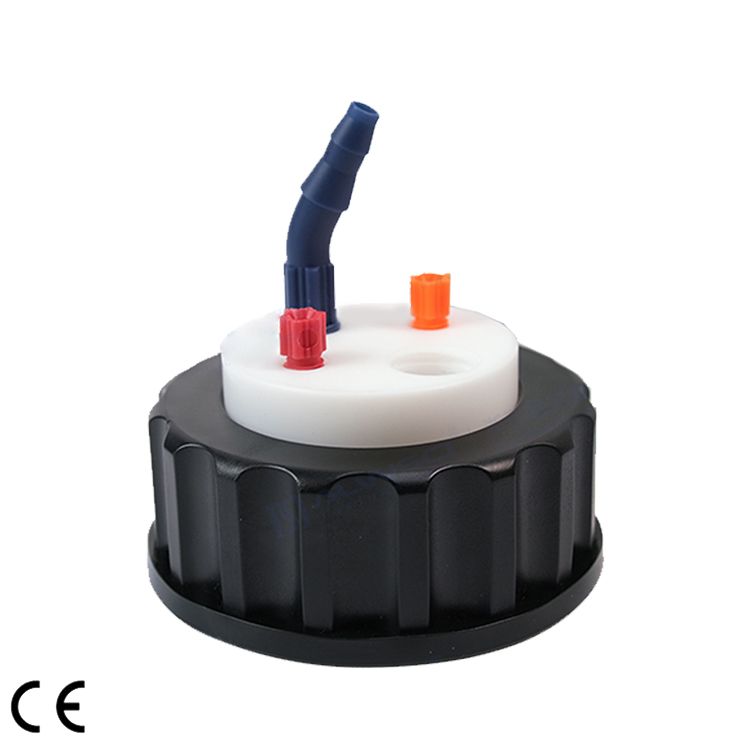

Waste Liquid Safety Cap, S60-3, S60-4
Descrição
- S60 Thread Interface: Compatible with conventional laboratory liquid waste storage containers.
- Color-Coded Interfaces:Features multiple colors for clear identification and distinction of different tubing lines.
- Advanced Adsorption:Activated carbon effectively adsorbs and catalyzes the decomposition of toxic gases, ensuring organic vapors are efficiently captured.
- PremiumQuality: High-grade materials with superior heat and corrosion resistance, ensuring exceptional cost-effectiveness.
Components:
Black S60 Solvent Safety Waste Cap*1, Activated Carbon Exhaust Filter*1, 25LWaste Liquid Storage Container*1
Solvent Safety Waste Cap
Component: S60 Thread Cap*1+360° Free Rotating Cover*1+Pipe Fitting*2
Material: The material of the S60 Thread Cap is PP (Polypropylene), 360° Free Rotating Cover is PTFE (Teflon), Pipe Fitting is PP (Polypropylene)
Waste Liquid Storage Container
Volume: 25L
Material: HDPE (High-density polyethylene)
Color: Translucent
Dimensions: 310*300*340mm
Activated Carbon Exhaust Filter
Component: Activated Carbon Exhaust Filter*1+Time Strip (6 months)*1
Material: HDPE (High-density polyethylene)
Color: Red
Purification Features
- The exhaust filter captures volatile vapors before they are released into the environment, reducing harmful emissions by up to 80%.
- Ensures the safe and secure collection of HPLC solvent waste.
- Compatible with a wide range of container types and tubing sizes.
- Provides comprehensive protection against solvent, acid, and alkali vapors.
Specification
| Model | S60-3 | S60-4 |
| Number of Ports in Cap | 3 | 4 |
| Fitting Material | PP, PTFE | PP, PTFE |
| Fitting ID | 3.2 mm | 3.2 mm |
| Reserved Port for Activated Carbon Exhaust Filter | 1 | 1 |
