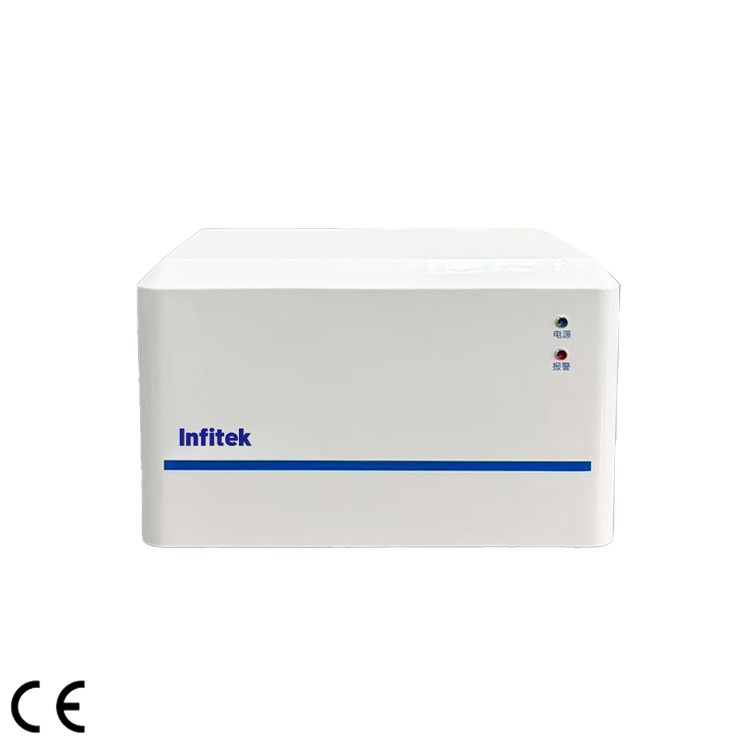

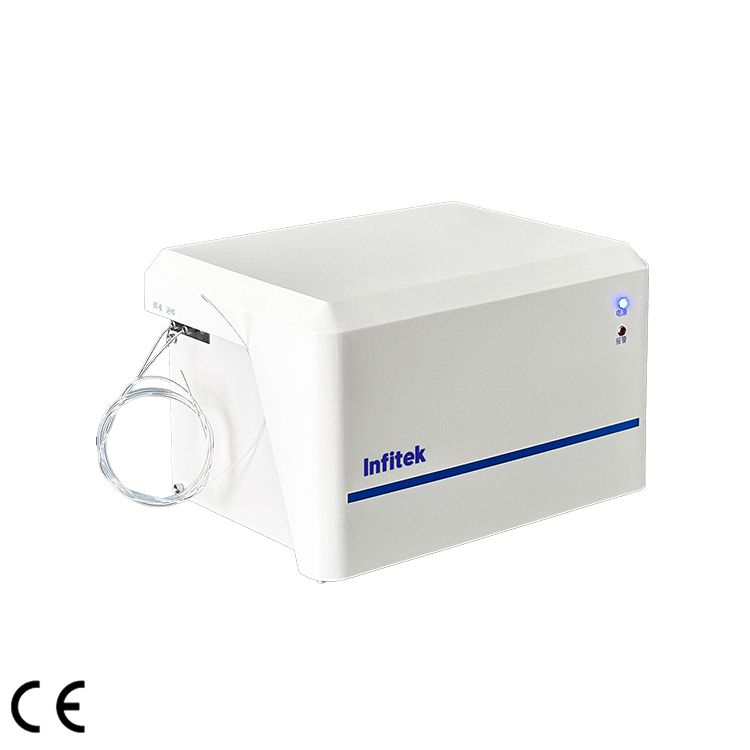

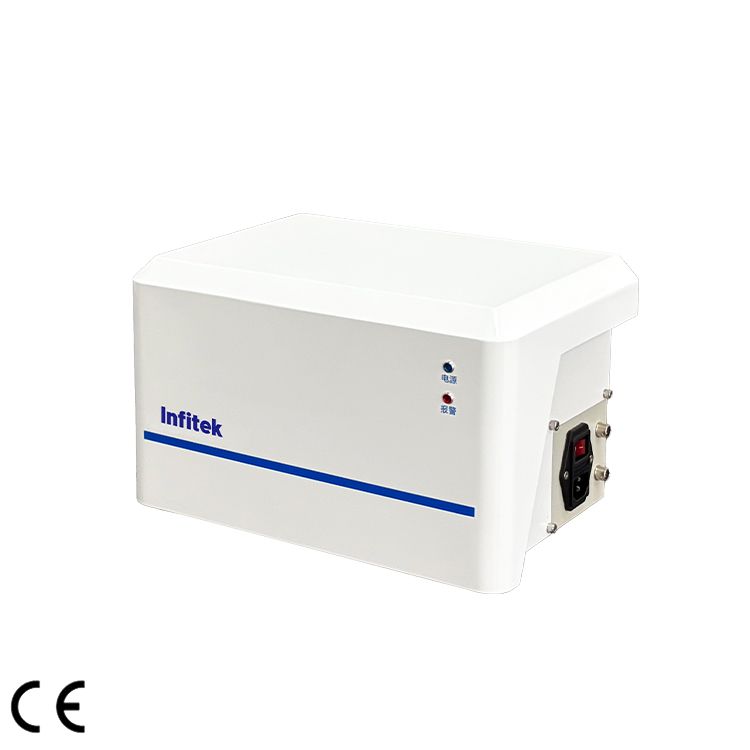

TOC Analyzer, TOC-Q600GS

The Total Organic Carbon Analyzer is an analytical instrument used to determine total organic carbon concentration in water samples. It can analyze water samples with TOC concentrations ranging from 0.1μg/L to 1500.0μg/L, featuring high sensitivity, excellent accuracy, and reliable stability.

Working Principle

The Total Organic Carbon Analyzer oxidizes slowly flowing water samples using a UV lamp, determining the TOC value of the water sample by measuring the change in conductivity before and after oxidation. Under the action of a peristaltic pump, the water sample enters the Teflon tubing and sequentially passes through the first electrode, the quartz spiral tube, and the second electrode, before finally being discharged through the waste tube. During detection, the conductivity values from both sensors are simultaneously collected to obtain G1 and G2. Organic matter in the water sample generates CO₂ under the action of the dual UV lamps, causing the conductivity to rise. The corresponding total organic carbon is calculated via the differential value (G2 – G1).

Features

• High detection accuracy and low detection limit.
• Conductivity temperature compensation technology improves detection accuracy.
• No carrier gas or reagents required, simplifying maintenance and reducing costs.
• Independent system suitability test interface for more user-friendly operation.
• UV lamp lifetime countdown for easy lamp replacement and maintenance.
• Features an alarm output for exceeding the upper limit.
• Optional automatic calibration kit for one-key automatic calibration and system suitability testing.
• Optional autosampler for unattended operation, saving labor and time.
