- Eyepiece: WF10X / 22mm; Reticule eyepiece 10X / 22mm
- Abbe Condenser, N.A. 1.25
- Inward-facing Quadruple Nosepiece
- Adopts infinity optical system and modular functional design
- With epi-illumination system and transmitted illumination

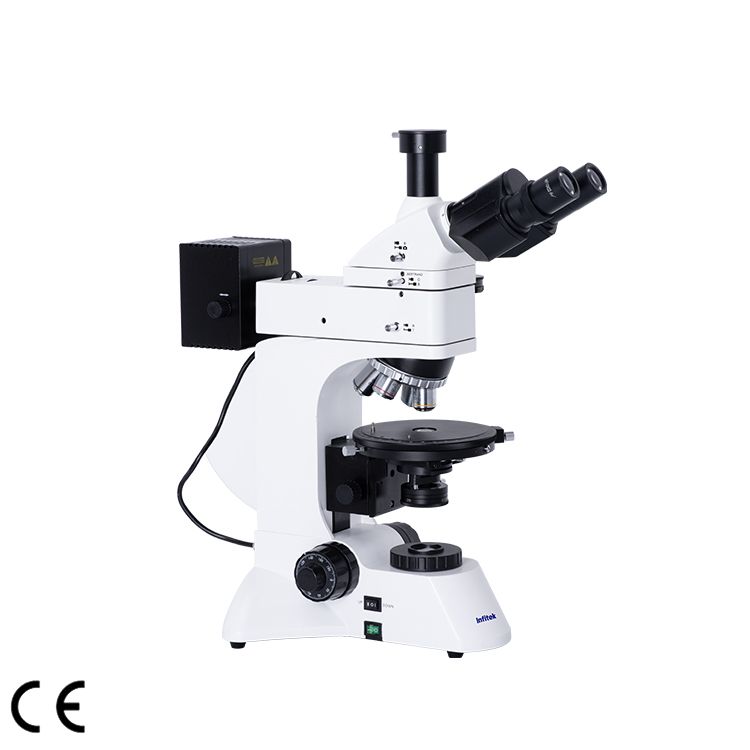

Polarizing Microscope, MSC-P41M
Descrição
Application
The microscope is widely applied in research and inspection across fields such as geology, chemical engineering, medicine, and pharmaceuticals. It is also capable of crystal phase observation for liquid polymer materials, biopolymers, and liquid crystal materials, making it an ideal instrument for research and teaching in scientific research institutions and universities.
Features
- Adopts infinityoptical system and modular functional design.
- Equipped with infinity-corrected, strain-free, long working distance plan objectives.
- Wide-field plan eyepieces: field diameter Φ22mm.
- Coaxial coarse and fine focusing mechanism with adjustable coarse tension and limit locking device; fine focusing graduation: 2μm.
- Polarizing observation unit can be moved in or out of the light path; both polarizer and analyzer are 360° rotatable.
- Rotatable stage with 360° graduations, 6′ vernier scale, adjustable center, and locking device; stage vertical effective stroke up to 30mm.
- Wide-range power supply; 6V/30W halogen illumination with adjustable brightness.
- Trinocular tube allows free switching between visual observation and photomicrography; 100% light split for imaging, ideal for low-light microscopic image capture.
Specification
| Model | MSC-P41M |
| Optics | Infinity optical system |
| Observation Tube | Tilting trinocular, Trinocular split ratio 100:0 or 0:100 |
| Viewing Head | Siedentopf head, inclined at 30° |
| Eyepiece | WF10X / 22mm |
| Reticule eyepiece 10X / 22mm (Graduation: 0.1mm/div.) | |
| Objective | Infinity objective lens PL L5X/0.12, working distance: 26.1mm |
| Polarizing objective lens 10X | |
| Polarizing objective lens 20X | |
| Polarizing objective lens 60X | |
| Nosepiece | Inward-facing Quadruple Nosepiece; Ball-bearing positioning |
| Focusing | Coaxial coarse and fine focusing mechanism with adjustable coarse tension and limit locking device; fine focusing graduation: 2μm |
| Stage | Mechanical X-Y Rotating Stage; Diameter: Φ150mm; 360° graduations; Vernier scale 6′; Center-adjustable with locking device |
| Epi-illumination
System |
6V 30W Halogen lamp, with adjustable brightness. |
| Built-in field and aperture diaphragms | |
| Filter conversion device (Yellow, Blue, Green, and Ground Glass) | |
| Analyzer: 360° rotatable with scale and fine vernier | |
| Polarizer: 360° rotatable | |
| Intermediate Tube | Push-in Bertrand Lens, center-adjustable |
| Compensators: Gypsum (λ), Mica (1/4λ), and Quartz Wedge | |
| Transmitted Illumination | 6V 30W Halogen lamp, brightness adjustable, lamp center adjustable |
| Abbe Condenser, N.A. 1.25, Height-adjustable | |
| Blue filter | |
| Frosted glass | |
| Polarizer: 360° rotatable with 4 readings (0°, 90°, 180°, 270°) |
