| Model |

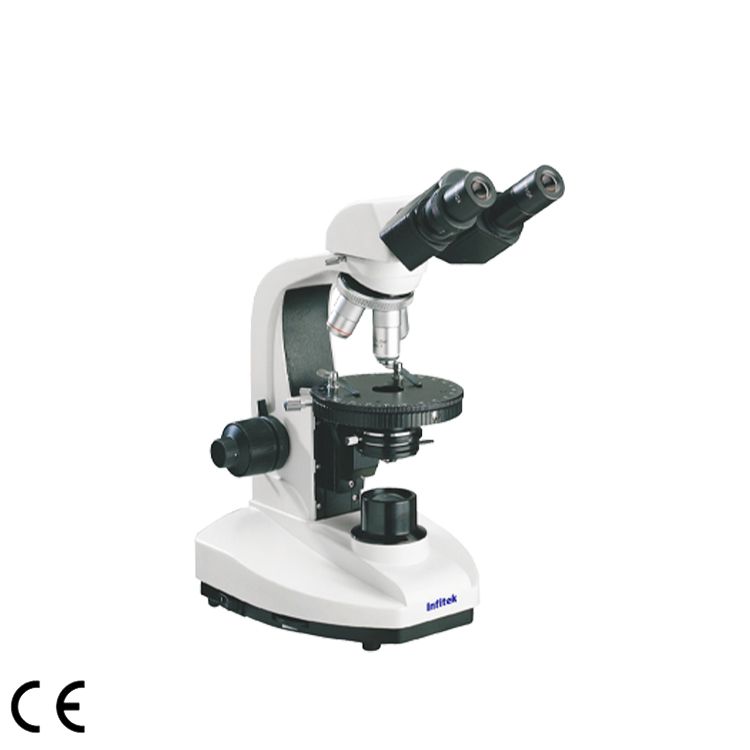

MSC-P20M |
| Eyepiece |
Wide-field WF10X (φ18mm) |
| Objective |
Achromatic objective 4X/0.10 |
| Achromatic objective 10X/0.25 |
| Achromatic objective 40X/0.65 (Spring) |
| Achromatic objective 100X/1.25 (Spring, Oil) |
| Viewing Head |
Binocular/Trinocular (optional), inclined at 30° |
| Analyzer |
Sliding |
| Focusing System |
Coaxial coarse and fine focusing mechanism with tension adjustment and limit locking device; fine focusing graduation: 2μm |
| Nosepiece |
Inward-facing Quadruple Nosepiece; Ball-bearing positioning |
| Stage |
Rotating stage (φ120mm) |
| Condenser |
Abbe Condenser, N.A.1.25, Rack & pinion vertical adjustable |
| Filter |
Blue filter |
| Frosted glass |
| Polarizer |
360° rotatable |
| Collector |
Applicable for halogen lamp illumination |
| Illumination |
6V 20W Halogen lamp; Adjustable brightness |
