- Capacity: 110g
- Readability: 0.01g, 0.005g, 0.001g
- Empty pan preheating
- Standard/Fast/Soft mode
- 5-inch full-color touch screen

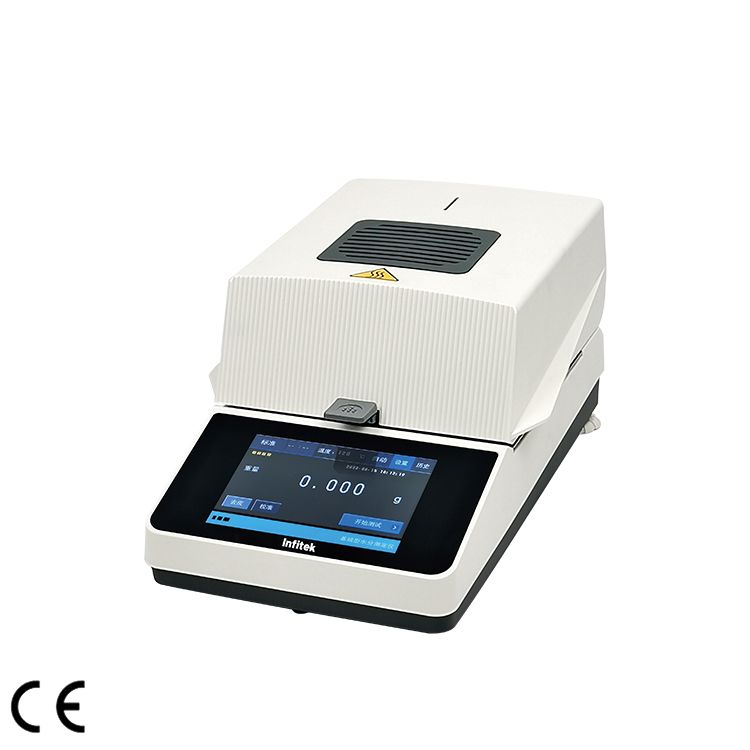

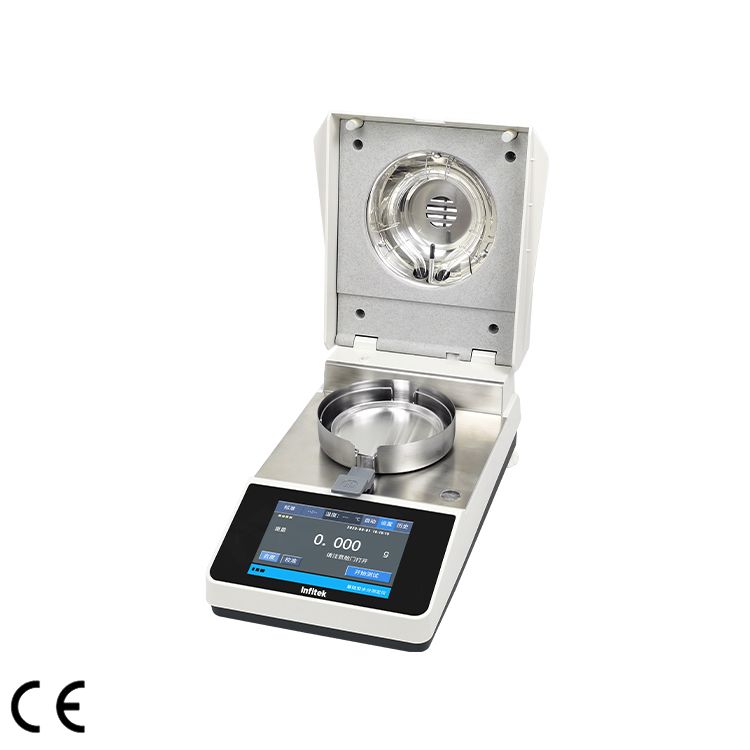

Moisture Content Tester, MCA110-T Series
Descrição
The moisture content tester features a variety of practical functions and reliable performance. It is designed for scenarios requiring moisture content detection, providing users with a convenient and precise solution for moisture analysis.
Application
11 Function Settings
| Heating Mode Setting | Stop Mode Setting | Heating Temp. Setting |
| Heating Time Setting | Baud Rate Setting | Language (CN/EN) Setting |
| Date & Time Setting | Data Storage Setting | Factory Reset |
| Instrument Calibration | Empty Pan Preheating |
Features
- Full-color touch screen
- Real-time testing curve
- Standard / Fast/ Softmodes
- Automatic/Manual/Timed stop mode
- Silent rapid cooling fan
- Adaptive micro-voltage adjustment
- Test frequency selection
- Clock function
- History record query
Specification
| Model | MCA110-T10E | MCA110-T5E | MCA110-T1E |
| Max. Capacity | 110g | ||
| Readability | 0.01g | 0.005g | 0.001g |
| Sensor | Load cell | ||
| Pan Size | φ100mm | ||
| Display | 5-inch full-color touch screen | ||
| Operating Temperature | 15℃~30℃ | ||
| Heat Source | Halogen lamp | ||
| Temp. Sensor | PT100 | ||
| Temp. Range | 40°C~160°C (1°C step) | ||
| Time Setting | 1~99min (10s step) | ||
| Moisture Range | 0.00%~100.00% | ||
| Moisture Readability | 0.10% | 0.05% | 0.01% |
| Solid Content Range | 100.00%~0.00% | ||
| Solid Content Readability | 0.10% | 0.05% | 0.01% |
| Data Storage | 20 Groups | ||
| Real-time Curve | Real-time dynamic curve | ||
| Testing Space | 30mm | ||
| Electricity | 220V, 50Hz / 110V, 60Hz | ||
| External Dimensions | 340*215*170mm | ||
| Package Dimensions | 415*310*255mm | ||
| N.W./G.W. | 4.0kg/3.5kg | ||
