- Capacity: 150L, 250L, 400L, 500L
- Temperature Range: 15～65℃
- Humidity Range: 20~95%RH
- With Visible Light+UVA

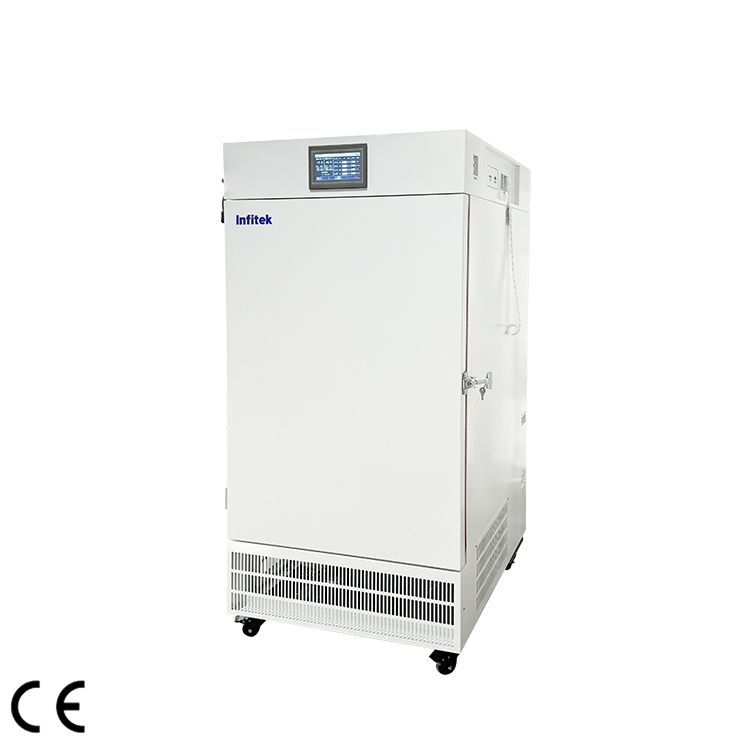

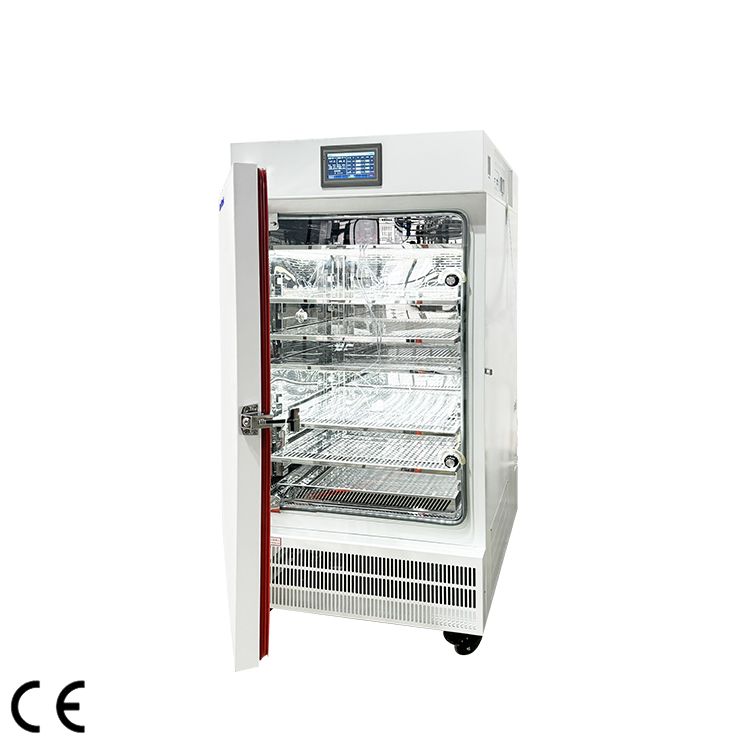

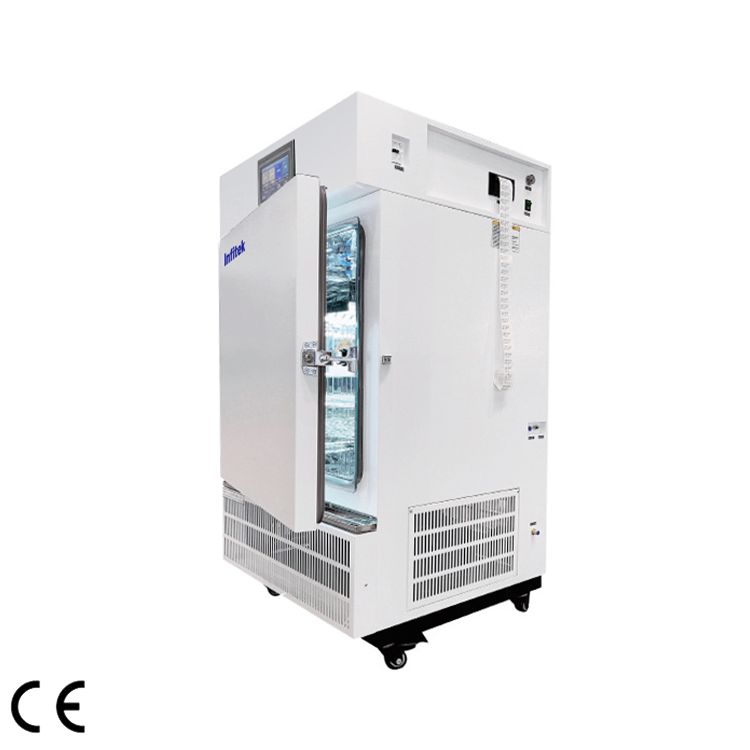

Medicine Stability Testing Chamber, ICB-MS-HLL Series
Descrição
- Independent Zone Control:Individually adjustable illuminance for each shelf.(One lighting layer is standard across all models, and the ICB-MS500-HLL offers an optional second layer. )
- Features four functions: temperature, humidity, visible light, and near-ultraviolet. Equipped with visible light and near-ultraviolet sensors for automatic illuminance control; both values are automatically printed and stored.
Specifications
| Model | ICB-MS150-HLL | ICB-MS250-HLL | ICB-MS400-HLL | ICB-MS500-HLL |
| Capacity (L) | 150 | 250 | 400 | 500 |
| Shelf (Standard) | 3/6 | 3/7 | 3/10 | 4/11 |
| Temperature Range (℃) | 15～65 | |||
| Temperature Fluctuation (℃) | ±1 | |||
| Temperature Uniformity (℃) | ±2 | |||
| Humidity Range (RH) | 20~95% | |||
| Visible Light | Illuminance Range: 100~8,000 Lux | |||
| Illuminance Uniformity: 4,500 ± 500 Lux | ||||
| Total Illuminance: ≥ 1.2 × 10⁶ Lux·hr | ||||
| UVA | Irradiance Range: 0.84~1.0 W/m² | |||
| Total UVA: ≥ 200 W·hr/m² | ||||
| Electricity | 220V, 50Hz/60Hz | |||
| Power (kW) | 1.5 | 1.8 | 2.0 | 2.2 |
| Ambient Temperature (℃) | 5 ~35 | |||
| Network | Connection via network port | |||
| Internal Dimensions
(W*D*H) (mm) |
600*405*625 | 600*500*830 | 600*700*950 | 680*680*1080 |
| External Dimensions
(W*D*H) (mm) |
780*830*1480 | 780*880*1650 | 780*1060*1750 | 860*1050*1850 |
* All specifications were measured at an ambient temperature of 20~25°C.
Hardware Configuration
| Compressor | Imported fully enclosed compressor |
| High efficiency, low noise | |
| Evaporator | Coating process with doubled corrosion resistance |
| Controller | 7-inch color programmable touch screen |
| Three-level authority: Configurable for more levels | |
| Audit trail: Storage of operation records | |
| Frequency conversion: Display the frequency output | |
| Prompt Reminder: Periodic maintenance reminders | |
| Alarm System | On-site audible and visual alarm |
| Remote information alarm (optional) | |
| Structural Material | Interior: 304 stainless steel |
| Polyurethane foam insulation | |
| Double Door | Inner door: Tempered glass |
| Inner wall of outer door: SUS304 stainless steel | |
| Safety Protection | Five layers of protection |
| Including independent over-temperature protection |
Software Configuration
| Data Storage | Built-in storage hard drive, USB export |
| 5 years | |
| Data Printing | Dot matrix micro-printer |
| Long-term storage | |
| Data Network Version | Server version |
| Complies with FDA 21 CFR Part 11 |
| Category | Title | File type/size | Download |
| Brochure | Brochure-Pharmaceutical Testing | PDF(3 MB) | download |
