- Compartment: 1, 2, 3
- Material: Cold-rolled steel plate (exterior) / PP (interior)
- Shelves: 1 × PP shelf, 2 × PP shelves, 3 × PP shelves
- Storage Capacity: 18 / 36 / 54 × 500 ml reagent bottles

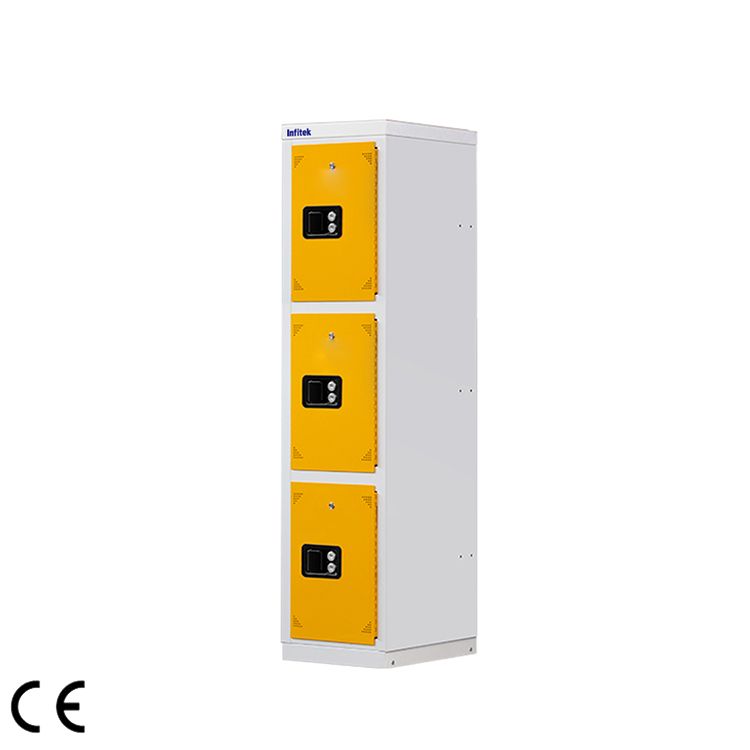

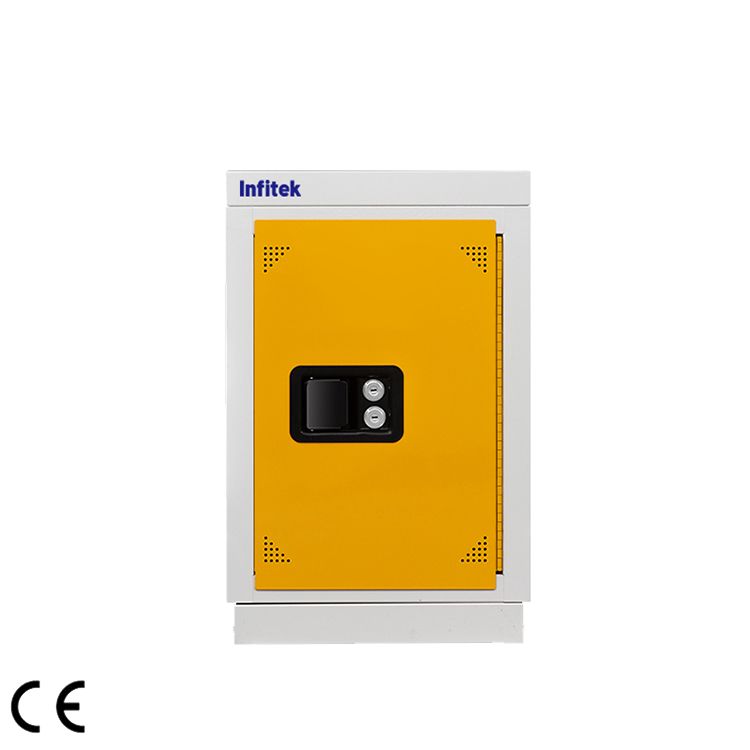

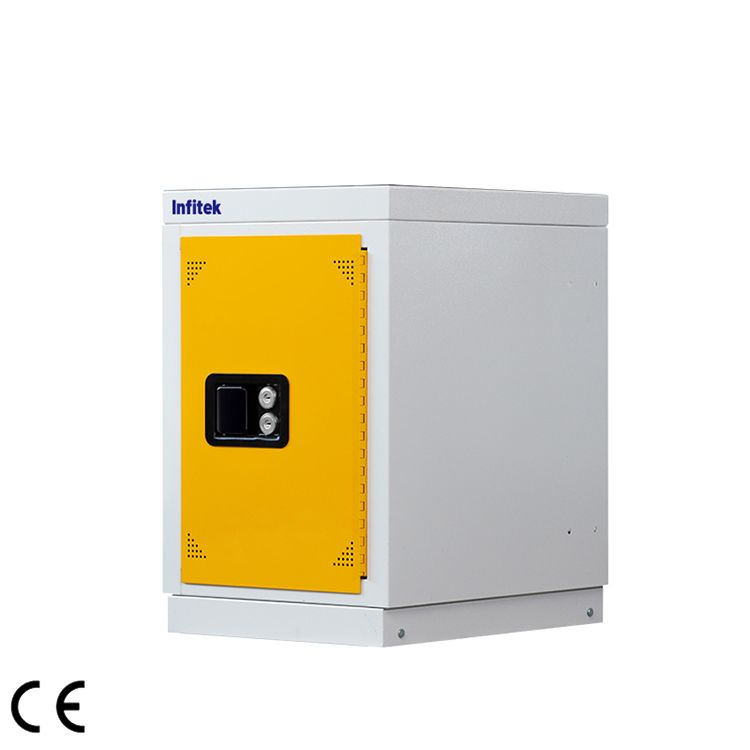

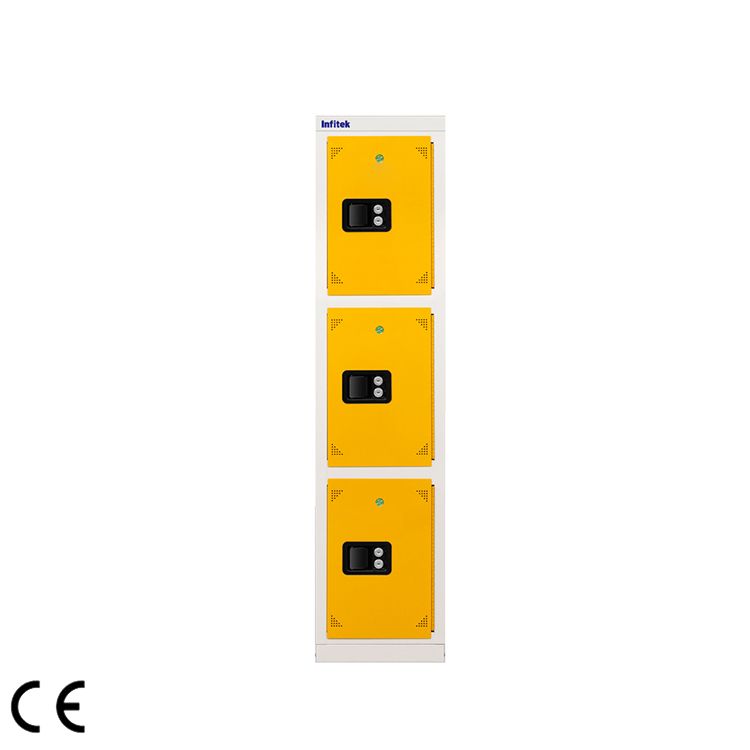

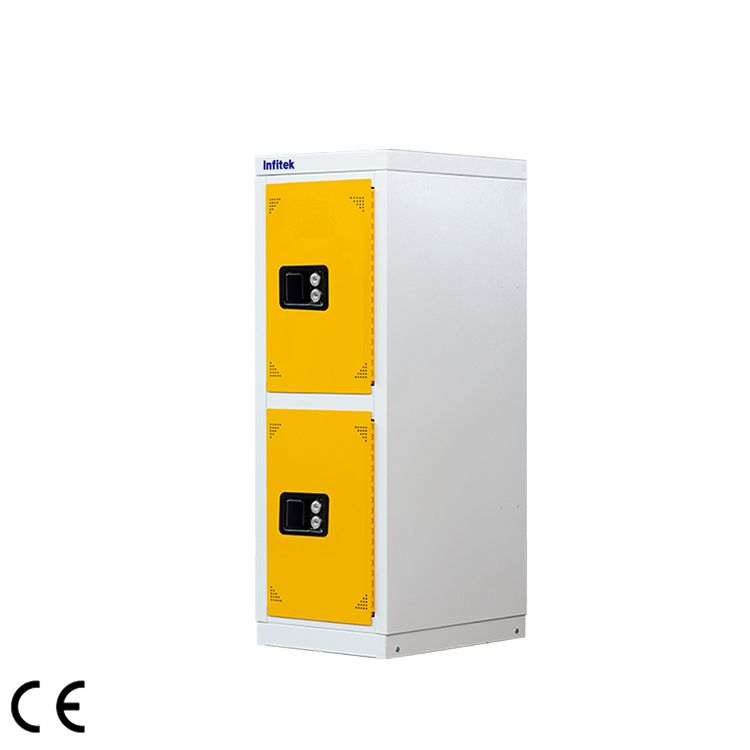

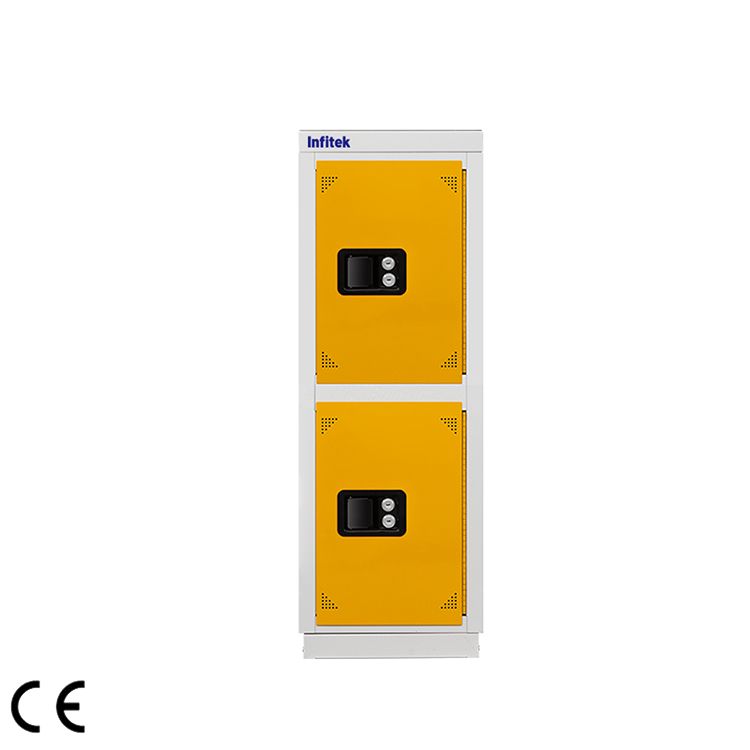

Chemical Safety Cabinet, CCC-101, CCC-201, CCC-301
Descrição
Features
- Double-walled structure: The outer shell is made of ≥1.0 mm high-quality cold-rolled steel plate; the inner liner is made of one-piece injection-molded PP material, with reserved detachable ventilation ports;
- The cabinet surface features an electrostatic epoxy resin coating with a coating thickness exceeding 80μm;
- The shelves are spill-proof PP trays, effectively preventing reagent slippage and tipping risks.
- Equipped with a detachable base and Ø64 mm nylon casters for easy mobility of the cabinet;
- Features a three-point linkage dual-lock structure; cabinet doors are available in yellow, red, blue, and white;
- Heavy-duty piano hinge design ensures the doors remain deformation-free over long-term use;
- The cabinet has a reserved grounding device and comes with a 1 m grounding cable;
- Reserved structuresfor installing ventilation, filtration, purification, and lock control systems, facilitating future product upgrades.
Specifications
| Model | CCC-101 | CCC-201 | CCC-301 |
| External Dimensions
(H*W*D) |
680*430*570 mm | 1240*430*570 mm | 1800*430*570 mm |
| Shelf Dimensions
(H*W*D) |
50*300*330 mm | 50*300*330 | 50*300*330 |
| Shelves | 1 × PP shelf | 2 × PP shelves | 3 × PP shelves |
| Structure | 1 compartment, 1 column | 2 compartments, 1 column | 3 compartments, 1 column |
| Static Grounding Clamp | 1 set | 1 set | 1 set |
| Lock | 1 set of dual mechanical locks | 2 sets of dual mechanical locks | 3 sets of dual mechanical locks |
| Storage Capacity | 18 × 500 ml reagent bottles | 36 × 500 ml reagent bottles | 54 × 500 ml reagent bottles |
| Optional | Time-controlled fan system, or time-controlled system with temperature and humidity monitoring and alarms | ||
