- Section Thickness Range: 0.25~100μm
- Trimming Thickness Range: 1~600μm
- Retraction Range:0~100μm
- Feed Speed: 2000μm/s

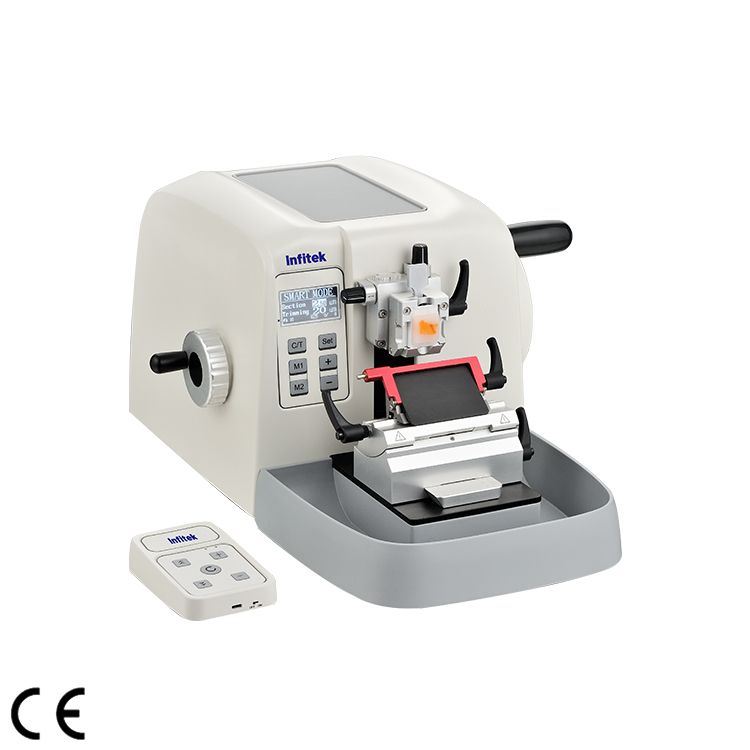

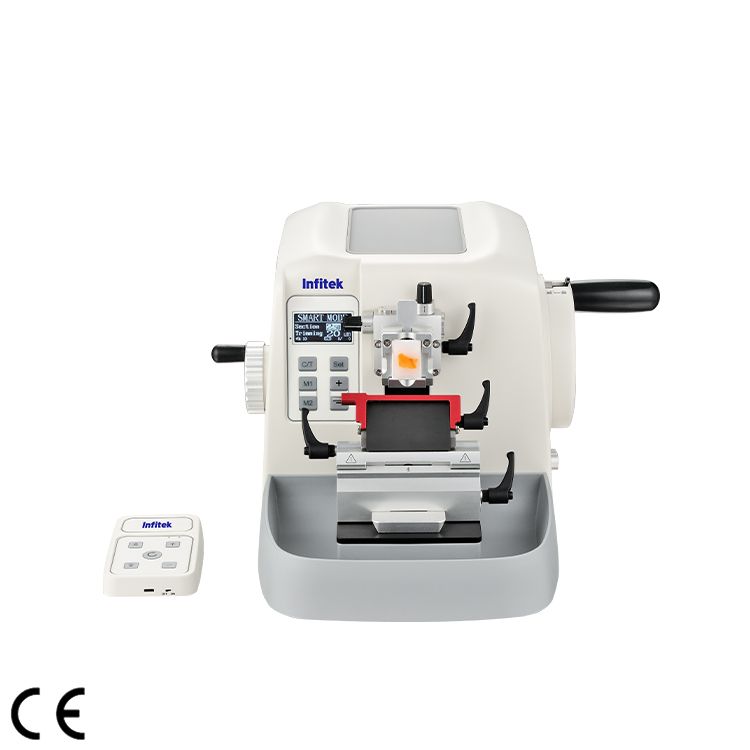

Rotary Microtome, RMT-SA500
Descrição
- Multi-mode slicing:conventional mode, intelligence sensing mode, whole layer cutting mode, available for users to choose.
- One-handed slicingand trimming: In sense mode, a single-handed half-turn of the large handwheel performs trimming, while a full turn performs sectioning. The system automatically senses and switches between these operations.
- Slice retraction: The sample head automatically retracts when it moves to the lower position, and the retraction amount can be set to prevent the slice from sticking during slicing.
- Slice count:The number of slices and trimming counts are clearly recorded and displayed.
- Sample head memory position:Multiple sample head memory point positions can be set to quickly move to different positions.
- One-click positioning of the sample head: There is no need to move the sample head back when changing the wax block, one-click return to the memory fixed point position.
- Intelligent fine-trimming function: Users can choose to turn it on or off to automatically adjust the slice thickness and take slices accurately.
- Audibleprompt: The sample head displacement travel limit position alarm buzzer prompts, which is convenient for users to judge the travel position.
- OLED display:clear writing, no backlight required, 360° angles for clear viewing of displayed data, no blind spots, online switching between Chinese and English, optional wireless hand controller.
- Sleep screen saver function:If there is no action for 15 minutes, it will enter automatic sleep state. Touch any key or handwheel to wake up immediately.
- Lubrication-free maintenance: Using a stable and durable maintenance-free grease guide rail structure design, no need to add lubricating oil.
- Various sample clamps:wax block clamp, embedding box clamp, extra large clamp and other clamp configurations are optional, equipped with a quick conversion seat.
- Sampleclamp angle adjustment: The adjustment angle is vertical and horizontal ±8° and is equipped with an angle scale indicator for easy observation.
- Encoded small handwheel:The advance and retreat speed of the small handwheel can be adjusted according to usage habits, and the rotation feed direction can also be adjusted interchangeably.
- Segmented positioning of the bladeholder: Three-segment rapid positioning to maximize the utilization of the slicing blade edge.
- Bladeholder angle adjustment: Blade holder angle 0~10° adjustable, blade holder front and rear position adjustable, all equipped with scale display.
- Bladeguard bar: The blade guard bar covers the entire length of the blade and is equipped with a safe blade-pushing structure, making blade replacement safe and convenient.
- Wide and narrow dual-purpose bladeholder: Optional wide and narrow dual-purpose blade holder, suitable for both wide and narrow blades.
- Multifunctional handwheel locking structure:The large handwheel upper lock is easy and quick to operate, and the large handwheel lower lock can be locked in any position.
- Handwheel hovering:The small handwheel on the left and the large handwheel on the right can hover in any position, safe and reliable.
- Anti-static magnetic waste chip trough:It is treated with anti-static coating and has a magnetic structure design to connect with the base for a more stable connection.
- Separate soft silicone tray: can place different tools, making cleaning easier.
- Carrying handle slots:Equipped with two front and rear handle slots, moving the instrument is safer and more reliable without the need for external handles.
| Model | RMT-SA500 |
| Section Thickness Range |
0.25~100μm 0.25~2.5μm, increment 0.25μm 2.5~5μm, increment 0.5μm 5.0~10μm, increment 1μm 10~30μm, increment 2μm 30~60μm, increment 5μm 60~100μm, increment 10μm |
| Trimming Thickness Range |
1~600μm 1~10μm, increment 1μm 10~20μm, increment 2μm 20~50μm, increment 5μm 50~150μm, increment 10μm 150~600μm, increment 50μm |
| Retraction Range |
0~100μm(0 means off) 1~5~10~15—-100μm adjustable |
| Full Slice Interval Span |
10~6000μm 10~12~15~20~25–5000~6000μm adjustable |
| Counting Range of Slicing and Trimming | 0~9999 |
| Horizontal Feed | 30mm |
| Vertical Stroke | 70mm |
|
Moving Range of Blade Holder ((left to right) |
0~26mm |
|
Moving Range of Blade Holder ((front to back) |
0~65mm |
| Sample Orientation | Horizontal 8°, vertical 8°, Sample holder 360° rotation (optional) |
| Minimum Scale Value of Slice Adjustment | 0.25μm |
| Maximum Sample Slice Area | 80*65mm |
| Feed Speed | 2000μm/s |
| Small Hand Wheel Feed | 100~1000μm/circle adjustable |
| Memory Position of Sample Head | 2 positions can be set at will |
| Slicing Accuracy | ±1% |
| Electricity | AC110V~120V/AC220V~240V, 50Hz/60Hz |
| Power | 100VA |
| External Dimension | 595*465*295mm |
| Net Weight | 28kg |
