- Optimized single-magnetron heating
- Vessel Volume: 10*100ml or 16*60ml
- Max withstanding temp：330℃
- Microwave control mode：PID control
- Rtemp sensor’s excellent IR penetration of TFM wall allows temperature of the digestion solution being detected directly

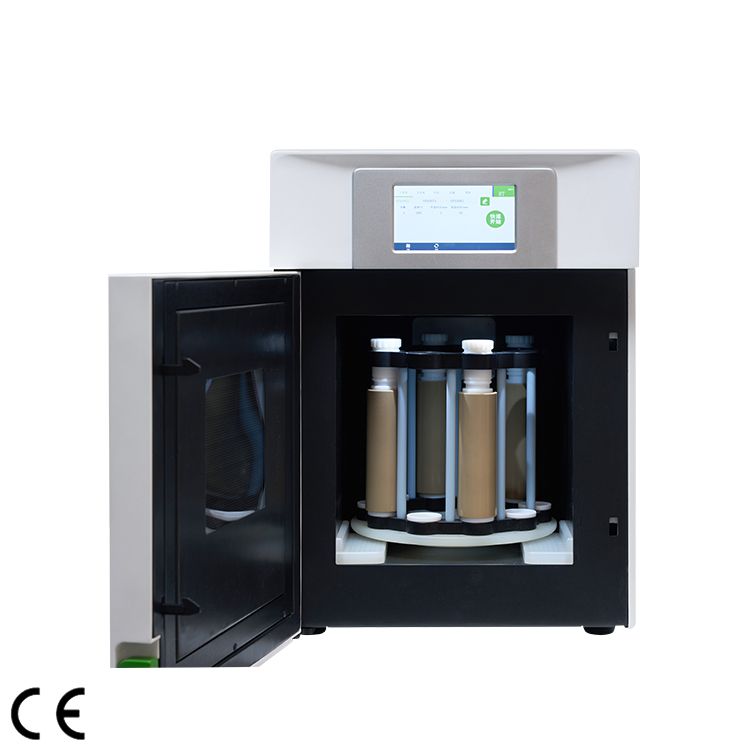

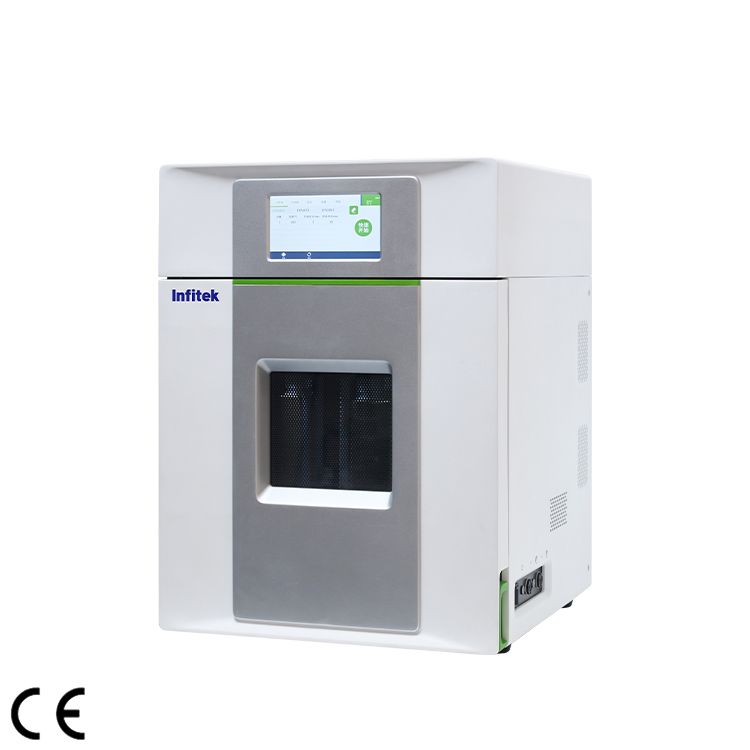

Microwave Digestion System, MDS300
Descrição
Description
The Microwave Digestion Systems are used to prepare liquid and solid samples prior to analysis.
Features
- Simpler Handling, Safer Digestion
Economy: Occupy less space, higher energy efficiency, reduced operating cost
Performance: Digestion capability by 10 high pressure vessel or 16 high throughput vessel
Efficiency: Rapid batch digestion and cooling (< 1 hour) for all sample types
Easiness: A simple 4-step procedure allows fast (<3 min) and safe assembly of 16 vessels
- All-Around Digestion Safety Guarantee
Instant Pressure Management in All Vessels
The vent-and-seal technology ensures all vessels operate under safe and secure environment throughout the digestion.
 |
 |
| Fully sealed | Venting in action |
| Complete Infrared-based Temperature Solution
Rtemp enhanced IR sensor revolutionizes temperature monitoring in microwave digestion. |
|
 |
 |
| Rtemp sensor’ s excellent IR penetration of TFM wall allows temperature of the digestion solution being detected directly. | Conventional IR sensor measures the temperature of TFM wall only. |
Oven Body
|
 |
| Microwave Emitter
Microwave Focusing
|
|
Enhanced Safety Design
|
 |
| The Art of Cooling
TwinAir Technology
|
 |
| Hassle-free Operation Software
Intuitive Software Interface
|
 |
Pressure Control System
|
|
| Safety System Insurance
Hardware initiation sequence
Smart hardware control
|
|
Reaction Vessel Design
|
|
High Performance Rotor HP10 (Optional)
- Greater temperature and pressure tolerance fortough sample matrices.
- Digest 10 difficult samples in a single batch.
- Powered by Rtemp super IR technology.
- Contactless and real-time T/P control in full vessel set.
 |
| Rotor | HP10 |
| Number of Vessels | 10 |
| Vessel Material | TFM |
| Protective Sleeve Material | Reinforced PEEK |
| Vessel Volume | 100 ml |
| Max. Digestion Temp. | 240℃ |
| Max. Withstanding Temp. | 330℃ |
| Max. Withstanding Pressure | 150 bar |
High Throughput Rotor P16 (Optional)
|
 |
| Rotor | P16 |
| Number of Vessels | 16 |
| Vessel Material | TFM |
| Protective Sleeve Material | Reinforced PEEK |
| Vessel Volume | 60 ml |
| Max. Digestion Temp. | 220℃ |
| Max. Withstanding Temp. | 330℃ |
| Max. Withstanding Pressure | 120 bar |
Specification
| Model | MDS300 |
| Microwave Chamber Volume | 28L |
| Microwave Oven | Industrial grade resonance oven |
| Oven Body | 316L Stainless Steel |
| Microwave Emitter | One magnetron |
| Microwave Power | 1200W |
| Microwave Density | 42.86W/dm3 |
| Microwave Control Mode | PID control |
| Microwave Frequency | 2450MHz |
| Microwave Emission Mode | Unpulsed, ±1W |
| Microwave Control Mode | PID control |
| Touch Screen | 7-inch high definition color LCD |
| Ambient Temperature | 5~40℃ |
| Ambient Humidity | 15%~80% RH |
| Electricity | 220~240V/50Hz, 16A |
| External Dimension (H*W*D) | 615*452*499mm |
| Net Weight | 35kg |
